Description

        AT9110A is a dual-channel push-pull power amplifier dedicated integrated circuit device designed for controlling and driving motors. It integrates discrete circuits in a single chip IC, which reduces the cost of peripheral devices and improves the reliability of the whole machine. The input end of the chip is compatible with TTL / CMOS level and has good anti-interference performance. The two output ends can directly drive the forward and reverse movement of the motor. It has a large current driving capability, and each channel can pass a continuous 750-800mA. Current and peak current capacity can reach 1.5 ～ 2.0A; the built-in clamping diode can release the reverse impact current of the inductive load, making it safe and reliable in driving relays, DC motors, stepper motors or switching power tubes. The chip integrates a thermal shutdown protection function module. When it detects that the chip pn junction temperature exceeds a threshold, it shuts down all circuit module functions. AT9110A is widely used in toy car motor drive, stepper motor drive and switching power tube circuits.

Characteristic

Low quiescent operating current

Wide power supply voltage range: 2.5V-18V

800mA continuous current output capability per channel

Lower saturation voltage drop

Output has three states: forward, reverse, and high impedance

TTL / CMOS output level compatible, can be directly connected to the CPU

Built-in output diodes for inductive loads

Control and drive are integrated into a single IC with pin high voltage protection

The chip integrates a thermal shutdown protection function module. When it detects that the chip pn junction temperature exceeds a threshold, it shuts down all circuit module functions.

Operating temperature range: -20 ℃ ～ + 80 ℃

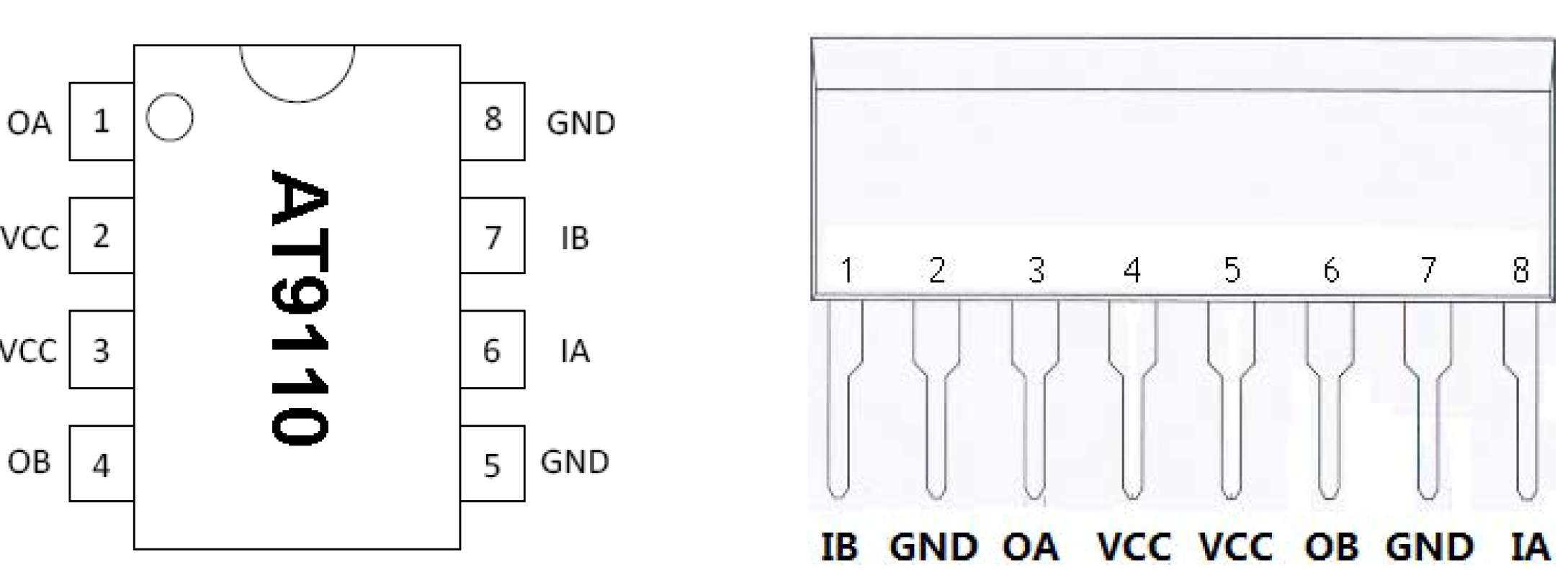

SOP8, DIP8, SIP8 package

typical application

Motor-driven toys

Code lock, safe (code lock motor control)

Water meter and gas meter

Home appliances
