Description

    The AT3232EU consist of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 1 Mbit/s and a driver output slew rate of 14 V/ms to 150 V/ms.

Features

    Operate With 3-V to 5.5-V V_CC Supply

    Operate up to 1 Mbit/s

    Low Supply Current . . . 300 mA Typ

    External Capacitors . . . 4 ´ 0.1 mF

    Accept 5-V Logic Input With 3.3-V Supply

    Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

    ESD Protection for RS-232 Pins

     –  ±15-kV Human-Body Model (HBM)

     –  ±15-kV IEC 61000-4-2 Air-Gap Discharge

     –  ±8-kV IEC 61000-4-2 Contact Discharge

Applications

    Battery-Powered Systems

    PDAs

    Notebooks

    Laptops

    Palmtop PCs

    Hand-Held Equipment

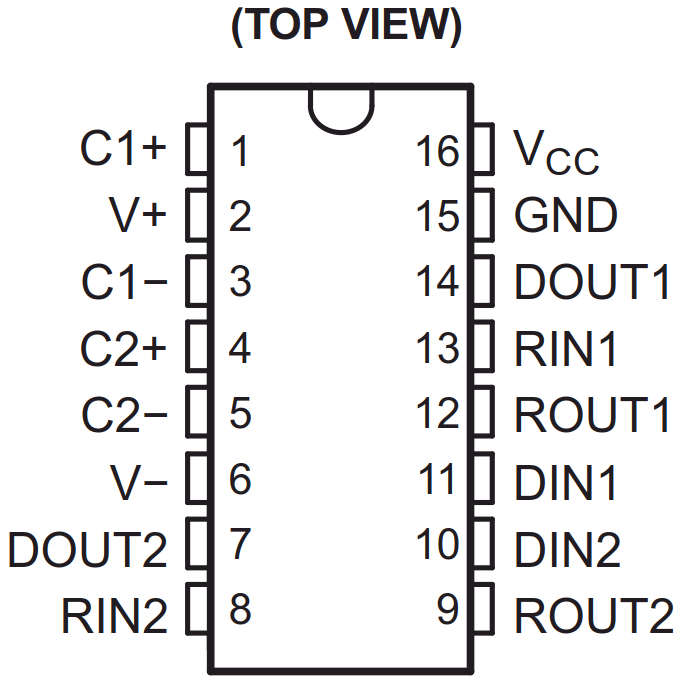

D, DB, DW, OR PW PACKAGE
