DESCRIPTION

     The AT1085 is a regulator with a maximum dropout of 1.5V at 3A of load current.

     Two resistors are required to set the output voltage of the adjustable output voltage version of the AT1085. Fixed output voltage versions integrate the adjust resistors.

     The AT1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown.

     Refer to the AT1084 for the 5A version, and the AT1086 for the 1.5A version.

FEATURES

    Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions

    Current Limiting and Thermal Protection

    Output Current 3 A

    Line Regulation 0.015% (typical)

    Load Regulation 0.1% (typical)

APPLICATIONS

    High Efficiency Linear Regulators

    Battery Charger

    Post Regulation for Switching Supplies

    Constant Current Regulator

    Microprocessor Supply

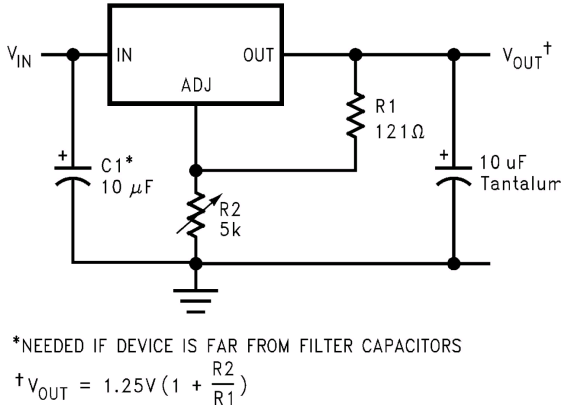

TYPITAL APPLICATION
