Description

   The AT8802/HV are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, they contain a high-side N-channel MOSFET switch with a current limit of 735 mA (typical) for step-down (Buck) regulators. Hysteretic control with controlled ON-time coupled with an external resistor allow the converter output voltage to adjust as needed to deliver a constant current to series and series - parallel connected arrays of LEDs of varying number and type, LED dimming by pulse width modulation (PWM), broken/open LED protection, low-power shutdown and thermal shutdown complete the feature set.

Features

    Integrated 0.5-A N-channel MOSFET

    VIN Range from 6 V to 42 V (LM3402)

    VIN Range from 6 V to 75 V (LM3402HV)

    500 mA Output Current Over Temperature

    Cycle-by-Cycle Current Limit

    No Control Loop Compensation Required

    Separate PWM Dimming and Low Power Shutdown

    Supports All Ceramic-Output Capacitors and Capacitor-Less Outputs

    Thermal Shutdown Protection

    VSSOP, SO PowerPAD™ Packages

Applications

    LED Drivers

    Constant Current Source

    Automotive Lighting

    General Illumination

     Industrial Lighting

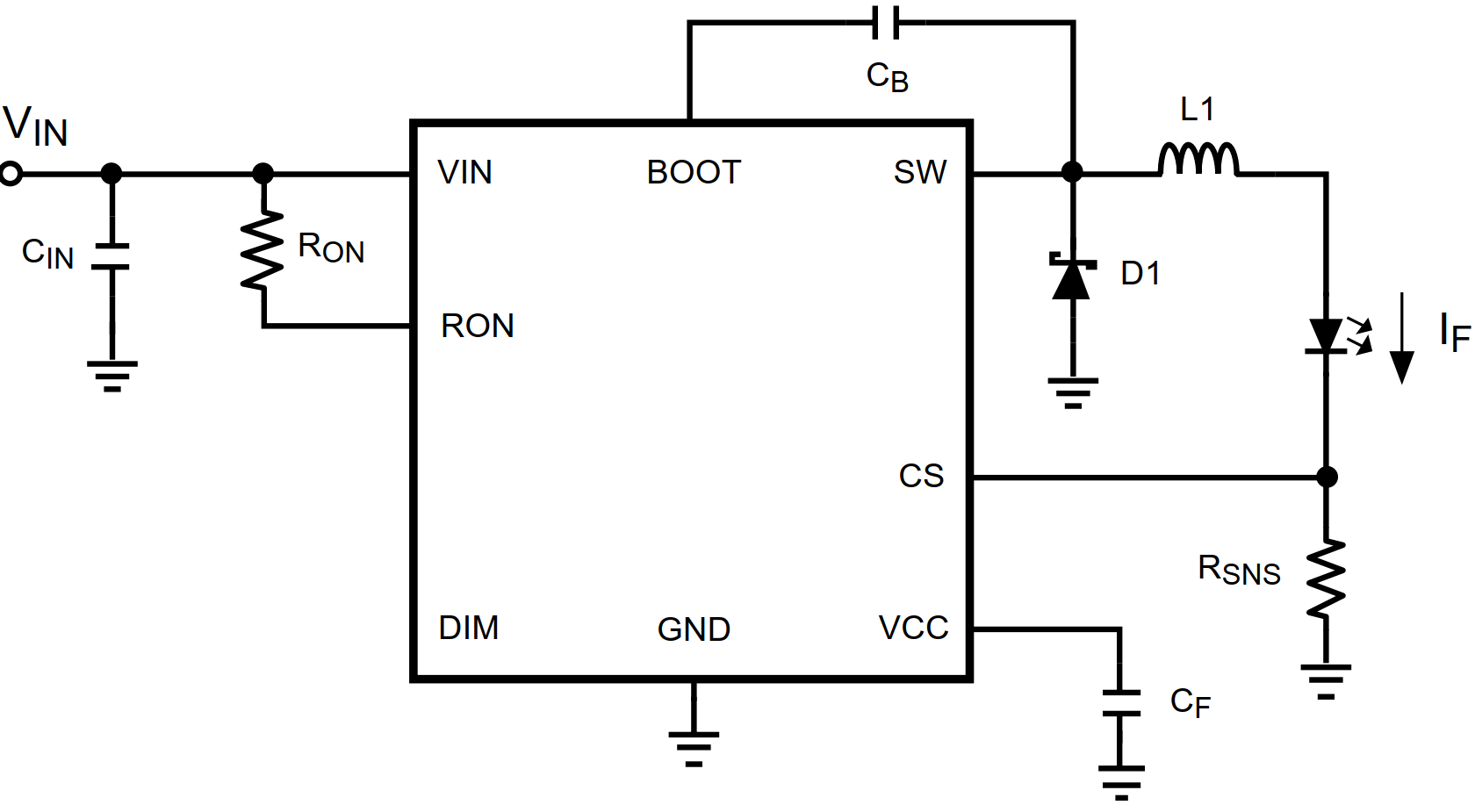

Typical  Circuit
