DESCRIPTION

    The AT3223 consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of RS232-and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The device operates at typical data signaling rates up to 250 kbit/s and a maximum of 30-V/ms driver output slew rate.

FEATURES

    Controlled Baseline

    -One Assembly

    -One Test Site

    -One Fabrication Site

    Enhanced Diminishing Manufacturing Sources (DMS) Support

    Enhanced Product-Change Notification

    Qualification Pedigree (1)

    RS-232 Bus-Pin ESD Protection Exceeds

    ±15 kV Using Human-Body Model (HBM)

    Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

    Operates With 3-V to 5.5-V V_CC SupplyOperates up to 250 kbit/s

    Two Drivers and Two Receivers

    Low Standby Current . . . 1 mA Typical

    External Capacitors . . . 4 ´ 0.1 mF

    Accepts 5-V Logic Input With 3.3-V Supply

    Alternative High-Speed Pin-Compatible Device (1 Mbit/s)

APPLICATIONS

    Battery-Powered Systems

    PDAs

    Notebooks

    Laptops

    Palmtop PCs

    Hand-Held Equipment

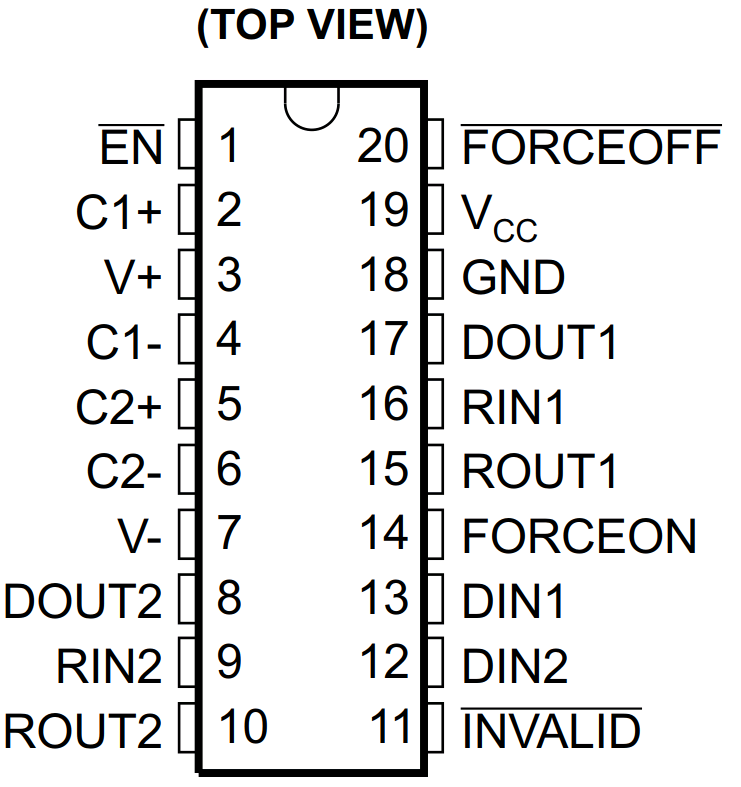

DB, DW, OR PW PACKAGE

ORDERING INFORMATION
